| Place of Origin: | CHINA |
| Brand Name: | INESA |
| Certification: | CE |
| Model Number: | DDSJ-319L |

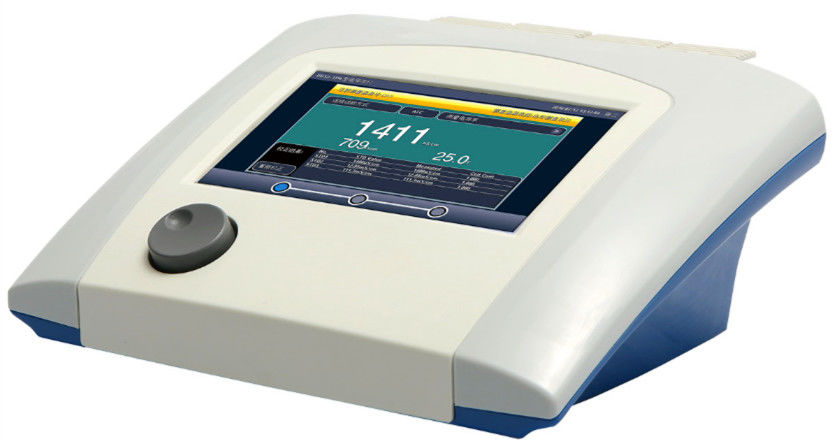

Conductivity Meter DDSJ-319L
Features
● Conductivity measuring module
● Colour touch screen with navigation
● Measuring parameters: Conductivity, Resistivity, Total Dissolved Solid (TDS), Salinity and Temperature;
● Supports automatic recognition function of conductivity standard solution, default four kinds of GB buffer
solution. It supports up to five-point calibration.
● Supports multiple conductive compensation modes, including pure water compensation.
● Supports multiple salinity compensation modes, including seawater salinity compensation.
● Supports intelligent frequency conversion, which can meet full range measurement with one electrode .
● Support USB and RS232 to connect with PC and Printer
● Support firmware upgrade
● Wide power supply: from 110V to 240V
● Option: SCH-01Auto sampler
| Model No | DDSJ-319L | |
| Parameters | Conductivity/Resistivity/TDS/Salinity/℃ | |
| Range | Conductivity | 0.000μS/cm～3000mS/cm |
| Resistvity | 5.00Ω.cm～100.0MΩ.cm | |
| TDS | 0.000mg/L～1000g/L | |
| Salinity | (0.00～8.00)% | |
| Temperature | -5.0～135.0℃ | |
| Resolution | Conductivity | 0.001μS/cm |
| Resistvity | 0.01Ω.cm | |
| TDS | 0.001mg/L | |
| Salinity | 0.01% | |
| Temperature | 0.1℃ | |
| Accuracy | Conductivity | ±0.5% FS |
| Resistvity | ±0.5% FS | |
| TDS | ±0.5% FS | |
| Salinity | ±0.1% | |
| Temperature | ±0.1℃ | |
| Data storage | 1000 data with time-and-date for GLP compliance | |
| View, delete and print | Yes | |
| Temperature coefficient | Adjustable | |
| Temperature Compensation | Manual/Auto -5.0～135.0℃ | |
| Display | 7 inch touch screen panel | |
| Output | RS232, USB | |
| Power supply | Universal power adaptor DC 24V/3A | |
| Dimensions | 280x280x130mm | |
| Weight | 2500g | |
| GLP Standard | Yes | |
