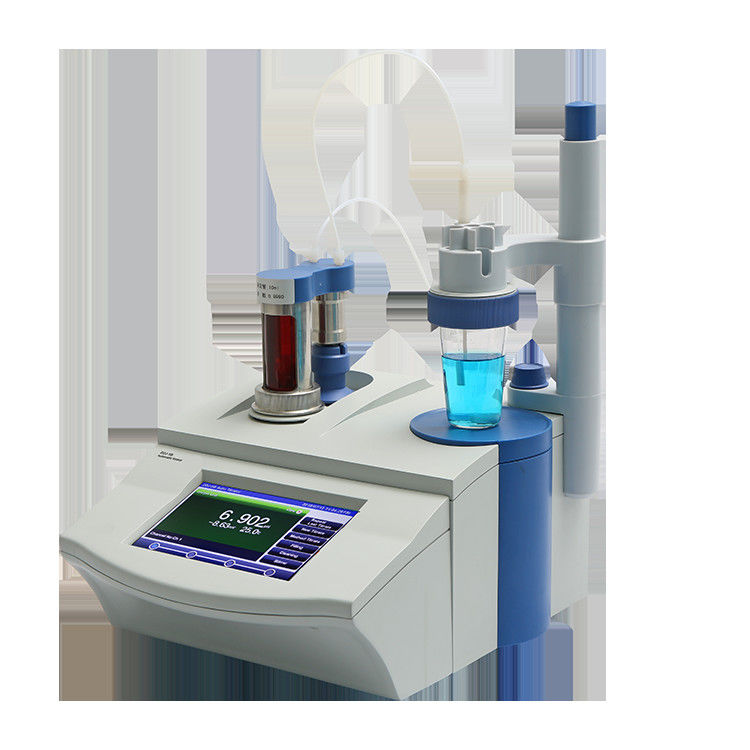

ZDJ-5B Automatic potentiometric titrator titration apparatus

ZDJ-5B Automatic potentiometric titrator titration apparatus

ZDJ-5B Automatic potentiometric titrator titration apparatus

Product Details:

Place of Origin: CHINA
Brand Name: REX
Certification: CE
Model Number: ZDJ-5B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $3,589.00
Packaging Details: 540x490x480mm/13Kg
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 units per month
Contact Now
Detailed Product Description

Features

1,7 inch color touchscreen and smart guide system.

2,Titration methods, curves and results are displayed in detail.

3,1 extra burette driver can be installed (optional).

4,Replaceable burette with high-accuracy (10 ml or 20 ml selectable).

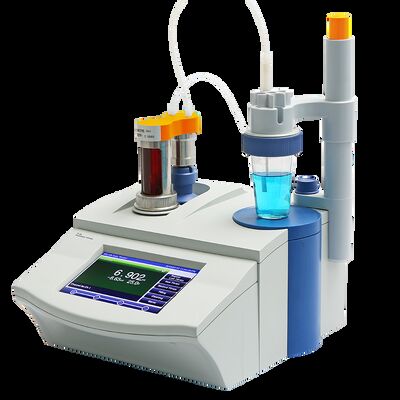

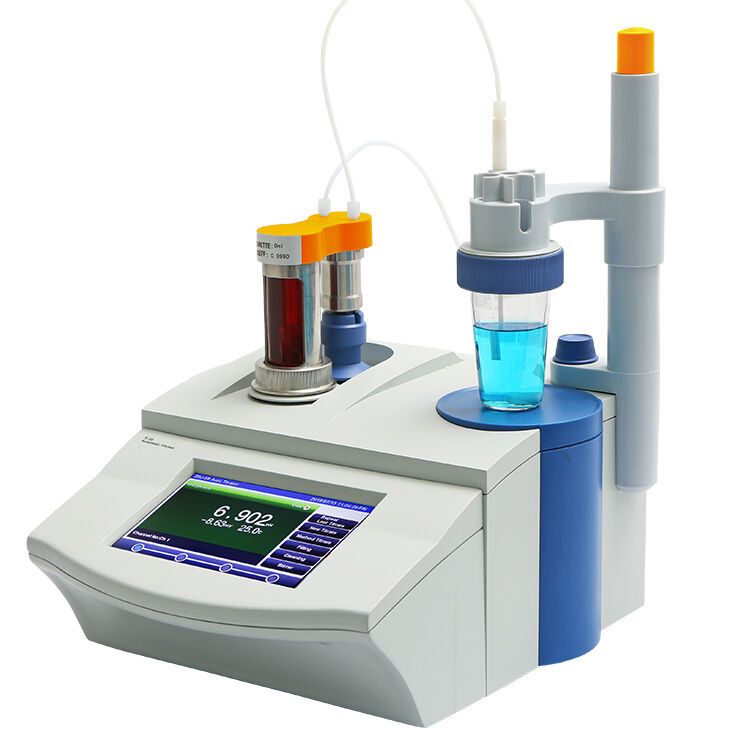

5,Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc. 6,Support titration modes of DET (dynamic equivalence point titration),MET (monotone equivalence point titration), SET (Preset Endpoint Titration), MAT (manual titration).

7,pH calibration and measurement are supported.

8,Up to 100 user-defined methods and 10 user-defined shortcuts.

9,Auto calculation with pre-defined formula.

10,Store up to 200 titration data sets (GLP-compliant).

11,Data analysis feature helps user review, compare and recalculate results.

12,Data can be easily transferred to printer via RS-232 communication interface..

13,Titrator can be controlled by computer via USB or RS-232 communication interface. 14,Automatic sampler is supported.


Model No
ZDJ-5B
Burette
Repeatability
0.20%
Accuracy
10ml Burette: ±0.025ml;20ml Burette: ±0.035ml
Resolution
10ml Burette: 1/20000;20ml Burette: 1/10000
Mechanical Unit
Resolution
1/30000
Charging speed
(55±10) s (Full burette)
Measuring Unit
Range
(-1999.0~1999.0) mv, (0.00~14.00)pH
Resolutions
0.1mV, 0.01pH
Accuracy
pH: ±0.01pH mv: ±0.03%FS
Fluctuation
(±0.3mV±1bit) /3h
Temperature Compensation
Range
(-5.0~105.0) ℃
Resolutions
0.1 ℃
Accuracy
±0.3 ℃
General
Power Supply
AC (110-250) V; (50/60) Hz
Dimensions /Weight
340*400*400mm/10Kg



Standard Package Accessories
Optional Accessories
1,10ml Burette
7,ATC Probe
1,20ml Burette
2,Platinum Electrode
8,Silver Electrode
2,Auxiliary Burette Driver
3,pH Electrode (indicator)
3,Anti-diffusion Capillary
4,Single Bridge Reference Electrode

5,Double Bridge Reference Electrode

6,pH Buffer Powders (4.01, 7.00, 10.01)
