| Place of Origin: | CHINA |
| Brand Name: | INESA |
| Certification: | CE |

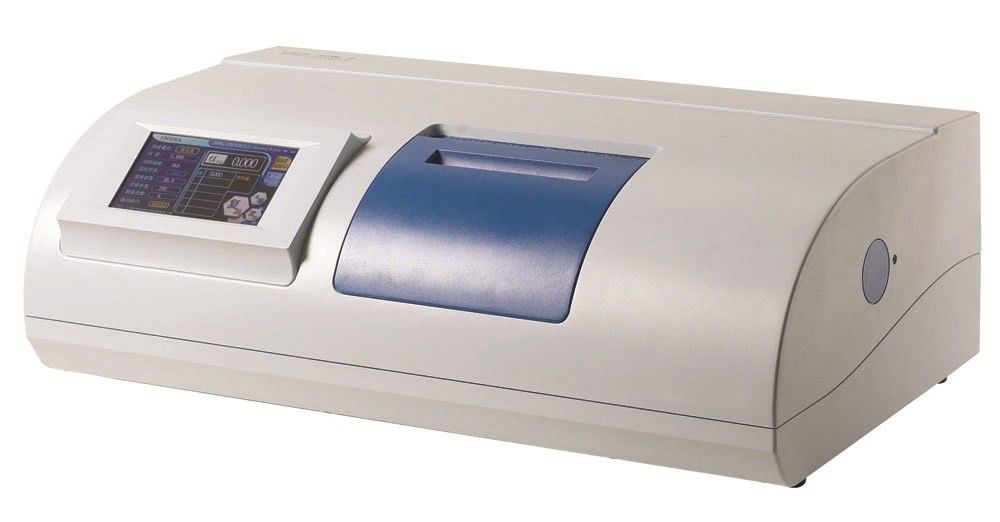

| Model Number: | SGW-2 |
No need warming up before measurement
Measuring specific rotation, optical rotation, suger degree and concentration
Automatic repetitiono-measurement for 6 times and calculation of average value and means squre root
Measurement of dark-colored sample
USB and RS232 Interfaces available
| Model No | SGW-2 | SGW-1 |
| Measurement range | ±45°(optical rotation) | |
| ±120°Z(sugar) | ||
| Accuracy | ±0.01° (-15° ≤optical rotation ≤+15°) | |
| ±0.02° (optical rotation<-15° or optical rotation>+15°) | ||
| Minimum indicating value | 0.001°,0.01°Z | |
| sample transmittance | ＞1% | |
| Repeatability | 0.002 °( 0.006°Z) | |
| Display | Color Touch Screen | |
| Light Source | LED | |
| Operation Wavelength | 589.3nm | |
| Temperature control range | 15-30℃ | |
| Temperature Accuracy | ±0.5℃ | |
| Length of Test Tube | 100mm and 200mm | |
| Constant Temperature test tube | 100mm | NA |
| Gross Weight | 48kg | |
| Overall Dimensions | 820mm 510mm 500mm | |
| Optional Accessories | Micro test tube (50mm) | |
